주요특징

ㆍLive Fiber Test 기능 기본 탑재
ㆍ5G 망 대응용 초단거리 OTDR 측정 성능 향상 (최소 2m)
ㆍ광파워미터 850nm 측정 기능 최대측정 파워 +15dBm 이상 수용
ㆍCWDM Analyzer 착탈식 모듈 방식 (DWDM 측정가능)
ㆍ적색광 파워 30mW 향상
ㆍ8 inch Multi touch screen 탑재
ㆍSFP DDMI 정보 표출 기능

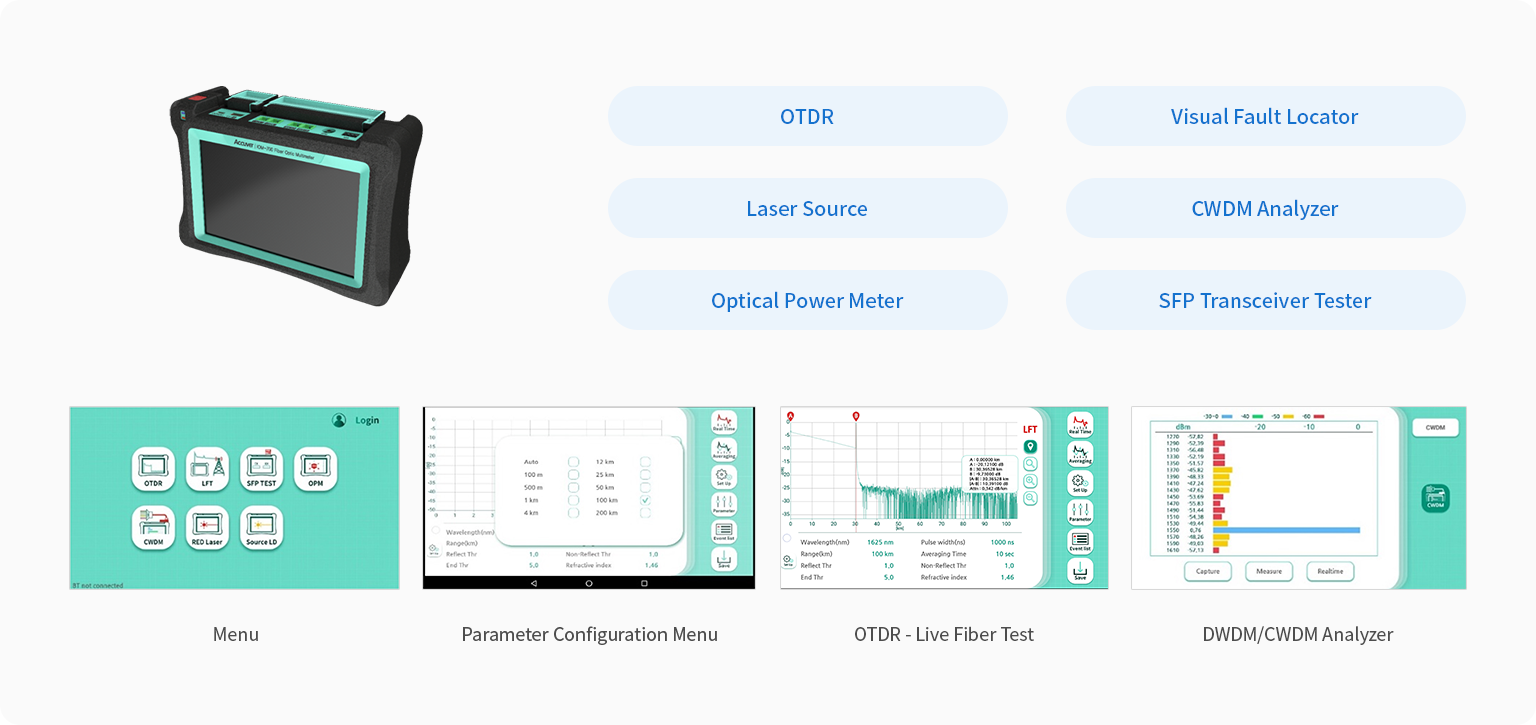

주요기능

ㆍMain Functions
　- OTDR, Live Fiber Test, CWDM Analyzer, Laser Source, Optical Power Meter, Visual Fault Locator, SFP Module Tester
ㆍOptional Functions
　- DWDM Analyzer, OTDR, wavelength changeable, High DR

제품상세

Testing Modules	Parameters	Units	Specifications
General	CPU(OS)	-	Exynos7420 (Android 6.0)
	Display	-	8 inch (1920 * 1200 px)
	Battery charging time	hr	9
	Continuous use time	hr	12
	Size	mm	244 * 172 * 76 (W x H x D)
	Weight	g	1630
OTDR	Test wavelengths	nm	1550/1625
	Dynamic Range	dB	37/36
	Pulsewidth	nsec	3 ~ 20,000
	Event Deadzone	m	< 1.5
	Attenuation Deadzone	m	< 6
	Min. distance resolution	cm	33
	Distance Accuracy	m	± (1 + 3*10^-5 × distance + sampling resolution)
	Averaging time	sec	1 ~ 300
	Real-time Scan	-	Available
Laser Source	Wavelength	nm	1550
	Output power	dBm	> -3
Optical Power Meter	Wavelength range	nm	850, 1200 ~ 1700
	Power range	dBm	-50 ~ +15
	Display resolution	dB	0.01
	Power accuracy	dB	± 0.5
Visual Fault Locator	Source wavelength	nm	650nm FP laser
	Output power	mW	> 30
DWDM/CWDM Analyzer	CWDM/DWDM Channel	CH	18
	Dynamic Range	dB	≥ 40
	Max. input power	dBm	7
	Measurement time	Sec	≤ 0.5
SFP Transceiver Tester	Dynamic Range	dB	50
	Support Single/Dual core	-	Available
