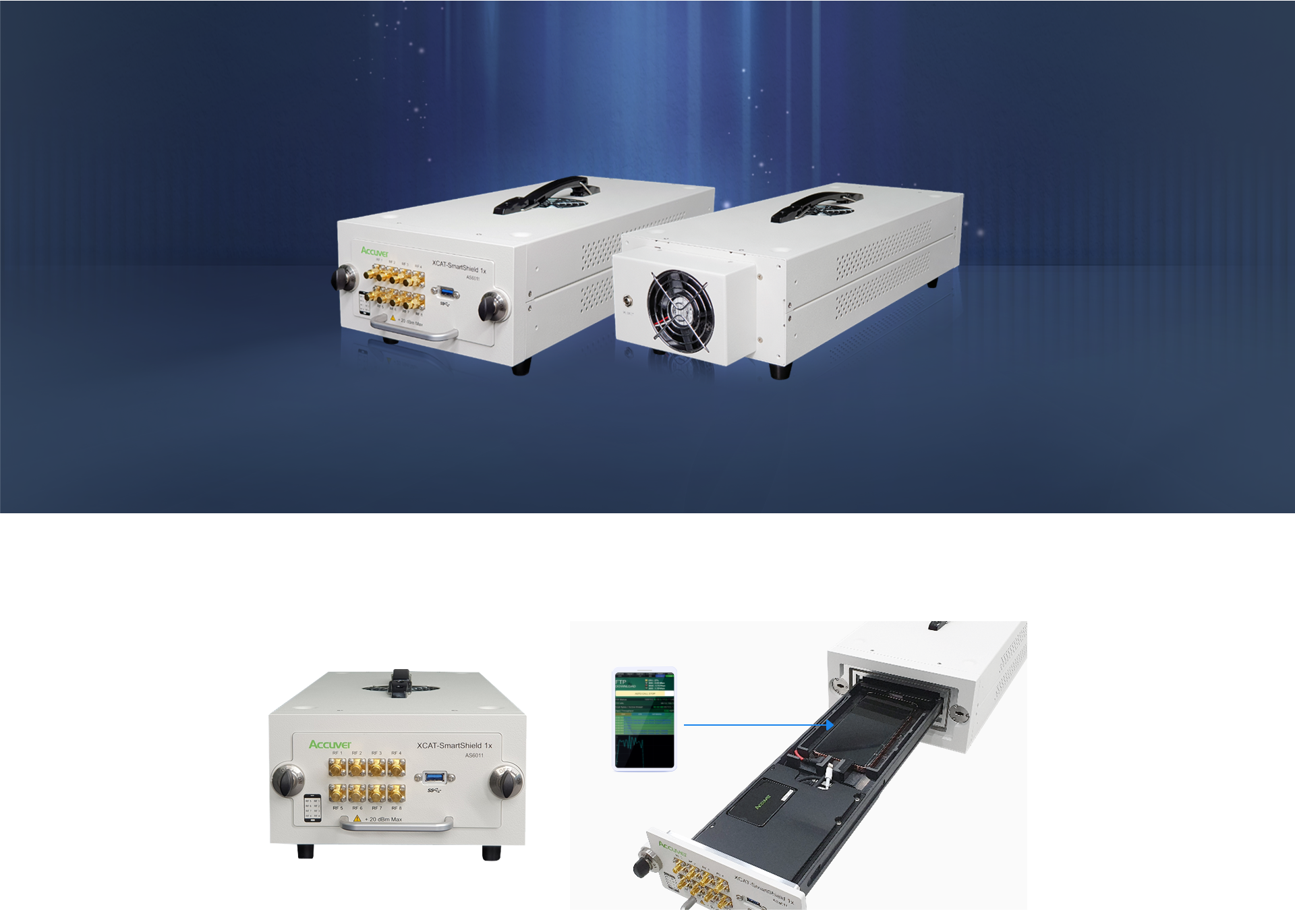

XCAT-SmartShield

XCAT-SmartShield

XCAT-SmartShield transmits a reference signal through probe antennas. It measures RSRP in a field MIMO environment to allow 1 to 1 connection between BS Tx and UE Rx antenna with physical RF cable connection in a lab area. However some of the recent UE device do not have externally figured antenna connector and unable to open the back cover. XCAT-SmartShield ease this hassle with providing virtual 1 to 1 wireless connection between BS and UE.

Features

ㆍAccurate measurement without external interference with excellent shielding performance
ㆍMinimize OTA (Over the Air) connection loss by applying near-field coupling method
ㆍReliable MIMO testing with reduced cross-talk between antenna ports (with XCAT-MAIS)
ㆍEasy smartphone installation and minimal change in characteristics due to installation
ㆍBuilt-in MOS test module

Functions

ㆍSupport Sub6 and mmWave (up to 40GHz)
ㆍSmartphone Test without external antenna connector
ㆍNo interference from outside (Isolation > 60dB)
ㆍSupport long time 5G NR test

Specification

XCAL-SmartShield Specification table. table contains Item, Smart Shield 1x G2, Smart Shield 4x G2. Item - Frequency Range, RF ports, Connection loss, Cross-talk, Shielding Performance, Max Input Signal Level, Smart Functions, Dimensions, Acceptable UE Size @ max, Weight.
Item Up to 6GHz Up to 40GHz
Frequency Range 300~6,000MHz 300~6,000MHz
RF ports 8 ports (SMA female) 12 Ports (2.92mm female)
Connection loss < 20dB < 30dB
Cross-talk < -20dB TBD
Shielding Performance > 60dB > 60dB
Max Input Signal Level + 20dBm + 20dBm
Smart Functions Cross-talk cancelling (with XCAT-MAIS) Cross-talk cancelling (with XCAT-MAIS)
Dimensions 196 x 101 x 500.8 (mm, W x H x D) 220 x 137 x 526.2 (mm, W x H x D)
Acceptable UE Size @ max 180 x 95 x 11 (mm, W x H x D) 180 x 95 x 11 (mm, W x H x D)
Weight 9.3kg 12.4kg
